ANALOGUE MODULATION COMMUNICATION TRAINER PAM-PWM-PPM
Order Code: 25269219.14
Category: General Lab Equipment V

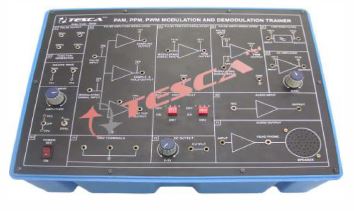

ANALOGUE MODULATION COMMUNICATION TRAINER PAM/PWM/PPM
SPECIFICATION
ANALOGUE MODULATION COMMUNICATION TRAINER PAM/PWM/PPM
Description
The Analogue Modulation Communication Trainer (PAM/PWM/PPM) is a compact, laboratoryoriented training system designed for practical instruction in analogue pulse modulation techniques. The trainer enables detailed study of modulation and demodulation processes
using internally generated signals and synchronized clocking, making it suitable for engineering education and laboratory experiments.
Functional Capabilities
- Modulation & Demodulation Techniques:
- Pulse Amplitude Modulation (PAM)
- Pulse Width Modulation (PWM)
- Pulse Position Modulation (PPM)
- Internal Signal Generator:
- XR2206 IC–based signal generator
- Signal Types:
- Sine wave
- Square wave
- Signal Frequency Range:
- 200 Hz to 2 kHz
- Sampling / Ramp Frequency:
- 2 kHz to 10 kHz (synchronous clock operation)
- Low-Pass Filter:
- Cut-off frequency: 5 kHz
Mechanical Specifications
- Dimensions (W × D × H): 265 × 185 × 95 mm Aprox
- Weight: Approximately 1.5 kg Aprox
Electrical Specifications
- Power Supply: 110 V – 260 V AC, 50/60 Hz
Environmental Conditions
- Operating Temperature: 0 °C to 40 °C
- Relative Humidity: Up to 85% RH
