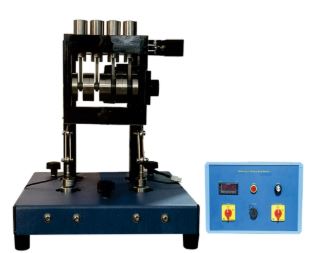

Balance of Reciprocating masses

Order Code: 26279665.4

Category: General Lab Equipment V

Balance of Reciprocating masses



SPECIFICATION

Balance of Reciprocating masses

  1. Forces in reciprocating engines
  2. Engine - number of cylinder: 4
  3. piston mass :40kg
  4. additional mass: 41g
  5. crank drive
  6. mass of connectiong rod: 18g
  7. centre distance of cylinders :35mm
  8. crank radius: 15mm
  9. length of connecting rod:70mm
  10. Measuring ranges
  11. Speed 100….3000min-1
  12. force 0….500N
  13. 230C,50Hz, 1phase
  14. 230,60Hz, 1 phase,120V,60Hz, 1phase
  15. LxWxH:420x370x350 mm
  16. Weight:approx.40kg
  17. LxWxH: 420x370x350mm
  18. Weight :approx 40kg
  19. LxWxH:230x230x80mm (display and control unit)
  20. Weight approx 1kg
