Features :

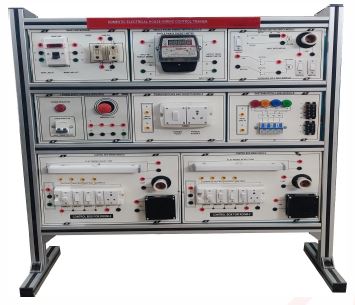

• Brand New Training System: Latest model designed specifically for educational laboratories and technical training institutes.
• Comprehensive Learning Platform: Enables students to study domestic electrical
• wiring, electrical safety, and modern home automation technologies on a single integrated system.
• Modular & Clearly Labeled Design: All modules are clearly marked and arranged on a modular platform, making circuit identification and experimentation easy for students.
• Safe Training Environment: Integrated multi-level electrical protection ensures safe operation during repeated student experiments.
• Real-Time Energy Monitoring: Built-in digital energy meter allows monitoring of voltage, current, power factor, and energy consumption.
• Hands-On Wiring Practice: Equipped with multiple sockets, rocker switches, and two-way switches for performing real wiring exercises commonly used in residential installations.
• Practical Load Simulation: Includes different types of lighting loads and heating appliances to simulate real household electrical loads.
• Automation Control Training: Incorporates time delay relays, selector switches, transformers, push buttons, and latching switches for automation control experiments.
• Smart Home Sensor Integration: Demonstrates operation of daylight sensors, fire/smoke detectors, and gas leakage detection systems with LED indication and relay output.
• Communication & Security Systems: Integrated video door phone and intercomsystem allow training on modern home communication and access control systems.
• Expandable Training Platform: Equipped with L-N-E distribution terminals and expansion connection points for additional experiments and future upgrades.
• Robust Educational Construction: Designed for continuous use in laboratory
  environments with safe and durable construction.
• Technical Specifications
  Power Supply

Input Supply: Single Phase, 230 V ±10%, 50 Hz
Electrical Protection

• Illuminated 2-pole mains switch with fuse – 26 A
• Short-circuit protection – 26 A
• Earth leakage protection – ELCB/RCCB (≈100 mA sensitivity)

Measurement System

• Digital Energy Meter displaying:
• Voltage (V)
• Current (I)
• Power Factor
• Energy consumption kWh (Active & Reactive)

Power Distribution

• Safe L-N-E distribution terminals
• Additional expansion connection points for wiring experiments

Sockets & Switching Devices

• 2-Pin Sockets: 5 A and 16 A types
• 3-Pin Mains/Power Sockets: Multiple units
• Rocker Switches: 24 units
• Two-Way Switches: 22 units

Electrical Loads

• Incandescent Lamps: 15 W, 40 W, 60 W, 100 W
• Fluorescent Tube: Approximately 1 ft length
• Electric Heater: 21 kW
• Electric / Induction Pan: 21 kW
• Maximum Operating Temperature: Up to approximately 250 °C

Control Modules

• Time Delay Relay: 30 / 60 seconds, 230 V
• Step-Down Transformer: Approximately 15 V AC, 21 A
• Push Buttons: For control circuit operation
• Latching Switches: For maintained switching operations
• Selector Switch: 6-way selector switch (230 V / 5 A) Sensors & Safety Modules
• Daylight Sensor: LDR / IR type
• Fire / Smoke Sensor: With LED indication and relay output
• Gas Leakage Sensor: With LED indication and relay output

Communication System:

• Color video door phone (hands-free)
• 1x4 intercom system with RJ connectors and buzzer
• Construction: Modular, clearly labeled, safe for repeated student operation
• Warranty: Minimum 1 year (parts & service)
