Digital Nanoammeter

Order Code: 16971

Category: Misc

SPECIFICATION

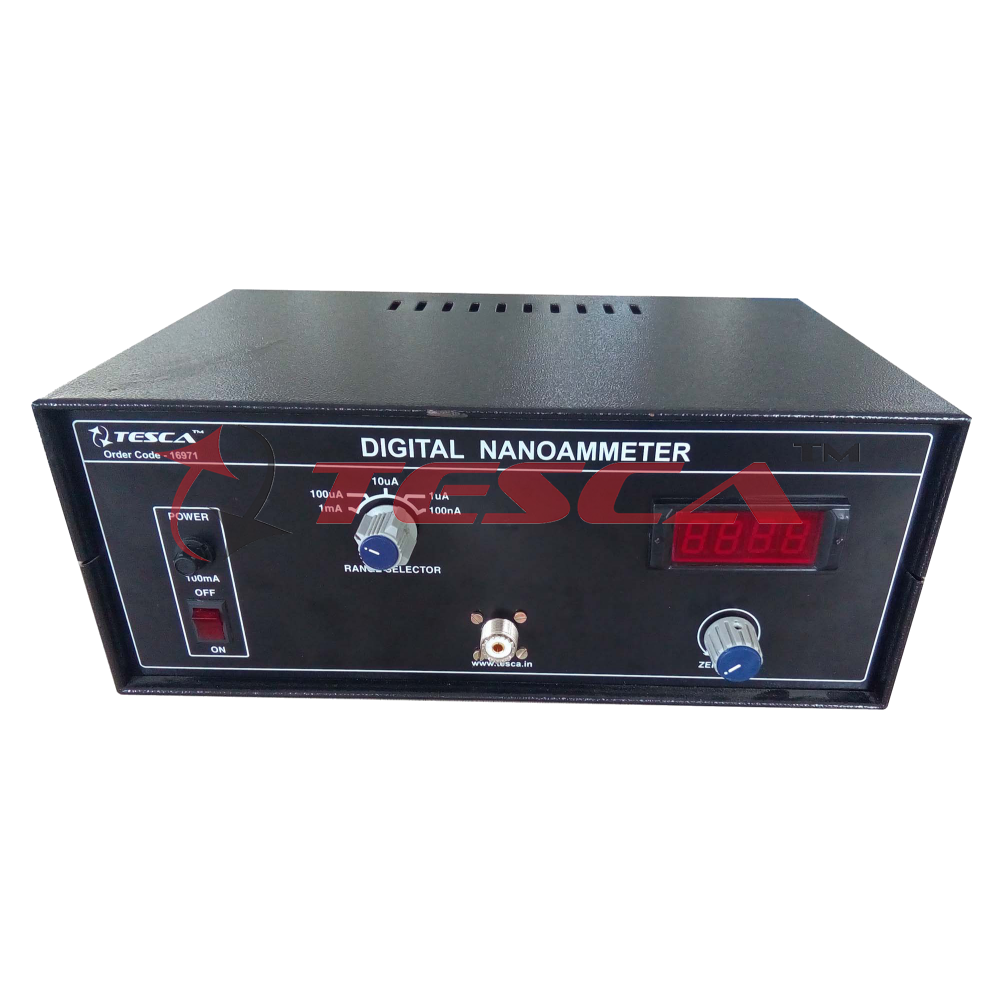

Order Code : 16971 Digital Nano-ammeter is suitable for current measurement in the range of 100pA to 2mA. For the ease, readings are directly obtained on a 3½ digit LED display. The instrument is capable of accepting either polarity of the input current. The instrument uses a FET input operational amplifier that offers the very low input bias current, low offset voltage, low drift and noise.

SPECIFICATIONS:

Range : 100 nA, 1 mA, 10 mA, 100mA , 1mA
Accuracy : ± 0.25% for all ranges
Resolution : 0.1 nA, 1 nA, 10 nA, 100 nA , 1mA
Input Resistance : 25 W, 2.5 W, 0.25 W, 0.025W , 0.001W
Display : 3½ digits 7 segment LED (12.5 mm height) with auto polarity and decimal indication.
Input : Through amp-henol connector.
Power Requirement : 230 V ± 10%, 50Hz, A. C Mains
Weight : 4 Kg. (Approx.)
Dimension : W290 x H 160 x D 230

FEATURES:

Measures current down to 100pA.
All solid state and IC design.
Accepts either polarity of input current.
Portable with compact size and light weight

APPLICATIONS:

To measure current from photo multiplier tubes, photometer etc.
Leakage currents in solid state devices, FET gate and tube grid voltage without loading errors.
Current through very high resistance in conjunction with a power supply.
Potentials across semiconductors, Piezoelectric systems & PH electrodes.
