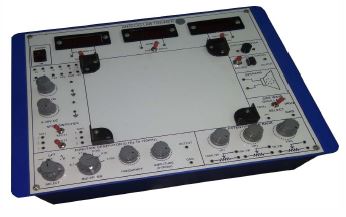

Electronic Circuits Trainer with Nine Module and Function Generator & DC Power Supply

Technical Specifications:
The Electronic Circuits Trainer consist of following nine modules with Function Generator and DC Power Supply:

Module-1: Diode Circuit:

• Half-wave and Full-wave Rectifiers
• Bridge Full-wave Rectifier
• Capacitive Filter Circuits
• Clamping Circuit
• Half-wave Voltage Quadrupler
• Limiting Circuit

Module-2: Bipolar Junction Transistor Circuits

• Transistor Switch
• DC Bias Circuit
• Darlington Amplifier
• Fixed Bias Common-emitter Amplifier
• Self-bias Common-emitter Amplifier
• Common-collector Amplifier
• Common-base Amplifier
• Capacitively Coupled Multistage Amplifier
• Directly coupled Multistage Amplifier

Module-3: Field Effect Transistor Circuits

• MOSFET DC Bias Circuit
• MOSFET Common-source Amplifier
• MOSFET Common-drain Amplifier
• MOSFET Common-gate Amplifier
• MOSFET Capacitively Coupled Multistage Amplifier
• MOSFET Directly Coupled Multistage Amplifier
• CMOS Common-source Amplifier
• CMOS Cascode Amplifier
• CMOS Capacitively Coupled Multistage Amplifier

Module-4: Operational Amplifier Circuits

• Inverting Amplifier
• Noninverting Amplifier
• Voltage Follower
• Miller Integrator
• Differentiator
• Comparator
• Weighted Summer
• Subtractor
• Differential Amplifier
• Instrumentation Amplifier
• Basic Multiplier

Module-5: Practical Waveform Generator Circuits

• RC Phase Shift Oscillator
• Wien Bridge Oscillator
• Hartley Oscillator and Colpitts Oscillator
• Astable Multivibrator and Monostable Multivibrator
• Triangular Waveform Oscillator
• Voltage Controlled Oscillator and Crystal Oscillator

Module-6: Digital and Timing Circuits

• 8 Bits BCD Adder
• 8 Bits BCD Subtractor
• 555 Tone Generator
• PWM Light Intensity Controlled Circuit
• BCD Digit Display Circuit

Module-7: Junction Field Effect Transistor Circuits

• JFET DC Bias Circuit
• JFET Common-source Amplifier
• JFET Common-drain Amplifier
• JFET Common-gate Amplifier
• JFET Capacitively Coupled Multistage Amplifier
• JFET and MOSFET Directly Coupled Multistage Amplifier

Module-8: Power Amplifier Circuits

• Class A Power Amplifier
• Class B Power Amplifier
• Class AB Power Amplifier
• Class C Power Amplifier
• Single-ended Push-pull Power Amplifier

Module-9: Regulator Circuits

• 7805 Regulator
• 7809 Regulator
• 317 Current Source
• Zener Diode Regulator
• BJT regulator
• 317 variable Voltage and Current Regulator
• Function Generator and DC Power Supply:
• Waveforms: Sine, Triangle Square, TTL Pulse
• Amplitude: >10Vpp
• Impedance: 50ohm plus minus 10 percent
• Duty Control: 30percent to 60percent
• Display: 6 Digit LED
• Frequency Range: 10HZ to 100 kHz 4 Ranges
• Frequency Range: 100HZ to 1 MHz 4 Ranges
• Constant Voltage Output: plus minus 5V plus minus 12V
• Variable Voltage Output: 0V to plus minus 15V
• Power source: 220 to 230V AC, 50HZ, 1 Phase
