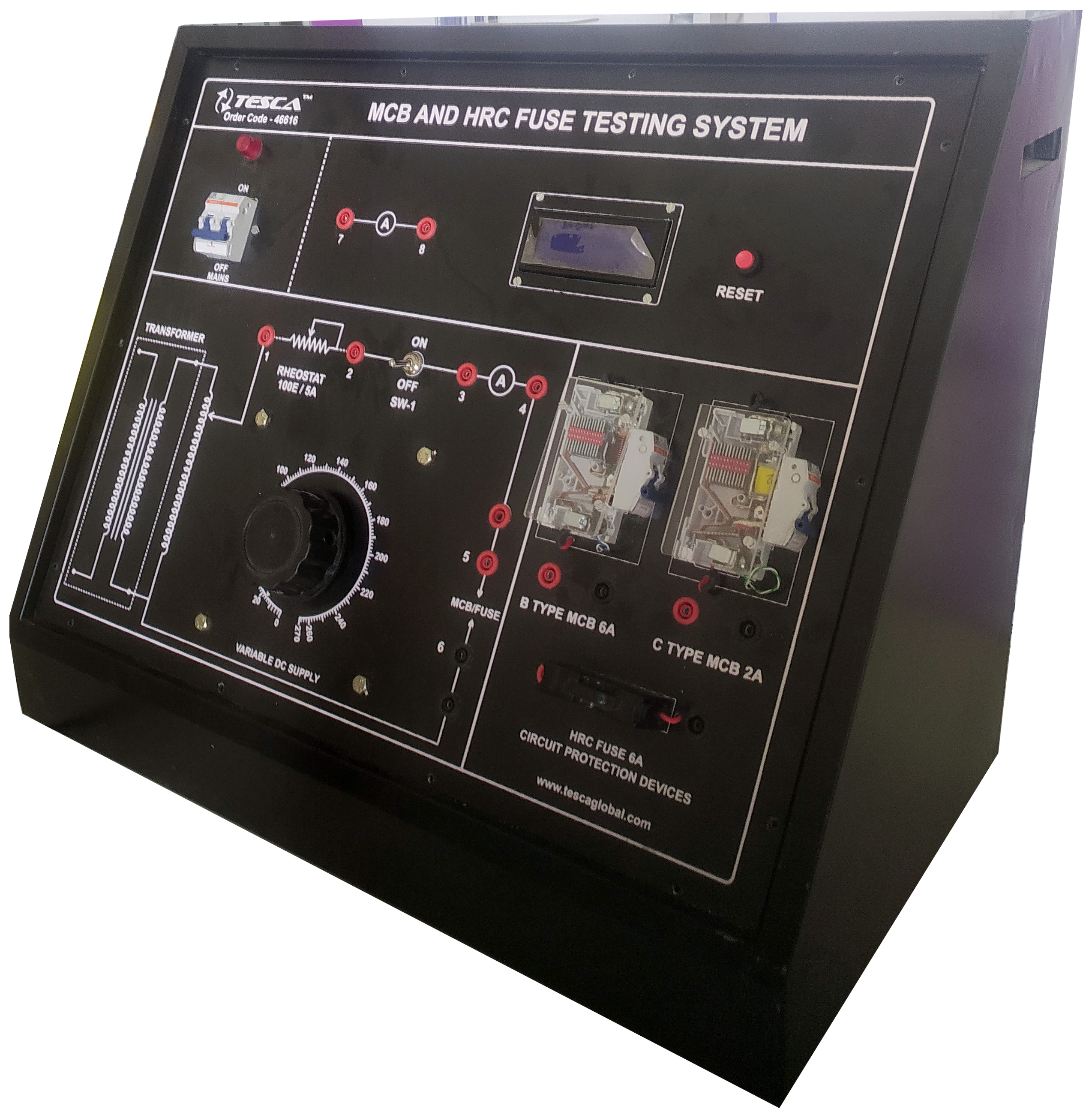

MCB and HRC Fuse Testing System

MCB and HRC Fuse Testing System

Order Code: 46616

Category: Electrical Machine Lab

46616 MCB (Miniature Circuit Breaker) and HRC (High Rupturing Current Capacity) Fuse Testing System is designed to explain the operating behavior and characteristics of MCB's and HRC fuse. It includes B type MCB, C type MCB and HRC fuse...

SPECIFICATION

46616 MCB (Miniature Circuit Breaker) and HRC (High Rupturing Current Capacity) Fuse Testing System is designed to explain the operating behavior and characteristics of MCB's and HRC fuse. It includes B type MCB, C type MCB and HRC fuse. These are protective devices capable of carrying currents under normal circuit conditions and automatically break the circuit whenever over load or short circuit condition occurs.
46616 provides complete learning contents to demonstrate the internal working of MCB’s and HRC fuse. The MCB’s are provided in transparent case to visualize the internal architectures. Two precise integrated circuit based Thermometers are provided on bimetal contact of MCB’s to analyze the temperature rise and fall. Digital timer is provided with start and stop facility to study the current versus tripping time characteristics. Inbuilt isolated variable AC Power Supply is provided for safety. The student will learn the difference in various classes of MCB’s.

Features

Alphanumeric 16X2 Big Font LCD for better visibility
Isolated Power Supply using Transformer
Inbuilt variable current injection facility
Transparent MCB's to understand internal architecture and its working
Inbuilt Timer, Current & Temperature on LCD
MCBs are mounted with temperature sensor for current temperature analysis
Equipped with supply indication lamp
Designed by considering all the safety standards
Diagrammatic representation for the ease of connections
Learning material CD
2 Year Warranty

Technical Specifications

Mains Supply : 0-220V AC ±10%, 50Hz
Single Phase Variac
- Input : 230V
- Output : 0-270V
- Current : 10A
Single Phase Transformer
- Rating : 1kVA
- Input : 230V
- Output : 230V
Experimental Setup
- MCB’s : B type, 6A
- C type, 2A
- HRC Fuse : 6A
Temperature Sensor (2 Nos.)
- Type : Mounting type
- Name : LM35
Display Resolution : 0.1°C
Mounting : With Brass holder mounted on MCB’s
Protective Devices : 10A (SPN)
Rheostat : 100W / 5A
Dimension (mm) : W 600 x D 350 x H 450
Weight : 22kg (approx.)
