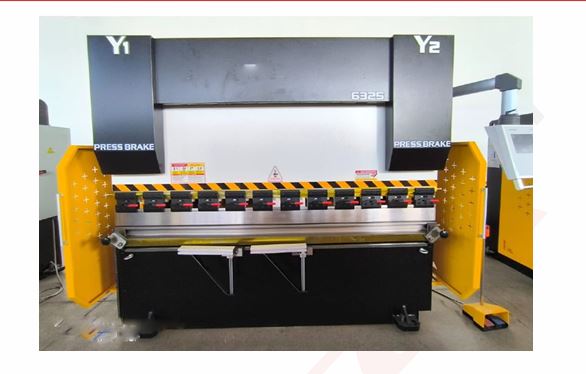

OVERVIEW:

Bending Capacity: 3mm X 2500mm with TP10S Controller
For X, Y1 & Y2 Axis Control with Electrical.


TECHNICAL SPECIFICATIONS:

• Bending Force : 63 Ton
• Work Table Length : 2500mm
• Bending Capacity in MS : 3mm
• Bending Capacity in SS : 2mm
• Distance Between Frame : 2000mm
• Throat Depth : 310mm
• Maximum Stroke : 110mm
• Open Height : 345mm
• Approach Speed : 180mm/sec.
• Bending Speed : 12mm/sec.
• Return Speed : 140mm/sec.
• Motor Power : 5.5KW


TP10S CONTROL SYSTEM

• High precision positioning control of back-gauge and slider two axis
• Programmable control of bending process
• Programmable valve group output control (PLC function)
• Multiple parts programming and processing can realize multi-step automatic operation
• Support angle programming, input angle automatically calculate depth
• Support 40 programs storage, 25 processes per program
• Automatic retreat function, avoid the interference of the back gauge device and the workpiece, reduce wear
• Manual log teaching
• Metric to English conversion
• Chinese / English multi-language display
• Industrial LCD screen full Chinese display
• With password protection, when users need to modify parameters, they need to enter the correct user password


Hydraulic System: Germany Bosch Rexroth

Germany Bosch-Rexroth integrated hydraulic system block, hydraulic transmission with high
reliability, integrated hydraulic system can effectively alleviate problems caused by leakage of
hydraulic fluid
