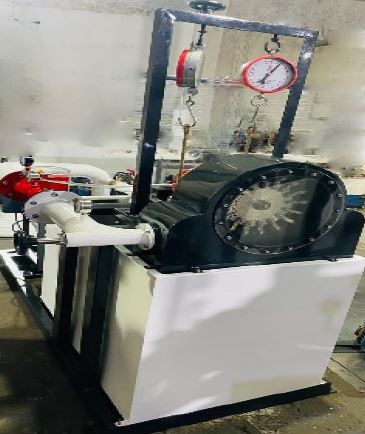

Pelton wheel Turbine test Rig for education (3kw)
Order Code: 25269282.1
Category: General Lab Equipment V
Pelton wheel Turbine test Rig for education (3kw)
SPECIFICATION
Pelton wheel Turbine test Rig for education (3kw)
Key features
A Pelton Wheel Turbine Test Rig for education is a scaled-down, practical setup allowing students to demonstrate and analyze the working principles and performance of a Pelton impulse turbine, a device converting high-pressure water's kinetic energy into mechanical power, by measuring head, flow, speed, and load to calculate efficiency curves, making abstract fluid mechanics tangible for engineering studies.
Technical Specifications
- Output power : 3 KW.
- Discharge : 650 LPM (approx.)
- Supply head : 45 meter
- Speed : 1000 RPM (approx.)
- Impeller : Bucket type
- Material brass, Nozzle : Material aluminum, Spear : Material stainless steel
- Dynamometer : Rope brake drum type
- Drum diameter 300 mm.
- Sump tank : minimum 600 x 650 x 900 mm
- Size, Capacity 350 liters approx
- Water circulation : Centrifugal pump , 15 HP , three phase, standard
- Dial balance (2 nos ) : One is 50 kg and second is 25 kg
- Pressure gauge : Bourdon type
- Range : 0-7 kg/cm2
- Discharges measurement : Venturi meter with differential pressure manometer
- Tank material : stainless steel material
- Pipe fitting : GI pipe
- The whole set-up is ingeniously designed and schematically arranged on a powdercoated rigid structure
