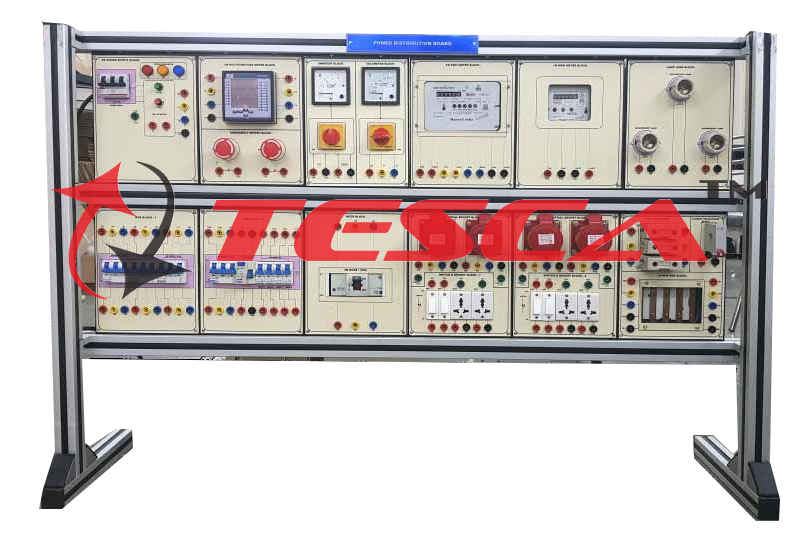

46609A Power Distribution Trainer is a rouged training system for the Electrical laboratories mounted on Aluminum profile rack with sturdy table top flat panel. Each panel has ABS molded plastic sturdy enclosure with 4mm shrouded connectors showing circuit diagram & its connection tag numbers for easy understanding and connections. The product helps you to get fully acquainted with the basic concepts and functioning of an Power Distribution Trainer.

Experiments
    01    To study working of dol starter and measure line and phase voltages
    02    To study connection and working of emergency switch
    03    To study and measure current in three phase circuits
    04    To study working of bus bar
    05    To study connection of mcb 3 pole circuit breaker 32a, 3 phase
    06    To study connection of single phase energy meter
    07    To study connection of three phase energy meter
    08    To study working of voltage selector switch
    09    To study connection of 1 phase 5 pin output socket
    10    To study connection of 3 phase 5 pin Output Socket

INDUSTRIAL SOCKET BLOCK - 1

Order Code - 69751
1    5 Pin Socket 2nos.
2    1 Way 2 Terminal 10A Switch     2nos.
3    3 Phase Industrial socket 2 Nos. 16A
4    Shrouded safety socket 4mm for Input/Output

INDUSTRIAL SOCKET BLOCK-2

Order Code - 69752
1    5 Pin Socket 2nos.
2    1 Way 2 Terminal 10A Switch 2nos.
3    3 Phase Industrial socket 2 Nos. 16A
4    Shrouded safety socket 4mm for     Input/Output

MCB BLOCK - 1
Order Code - 69753
1  MCB 32 Amp 3Phase 3 Pole 3nos.
2  Shrouded safety socket 4mm for     Input/Output

MCB BLOCK - 2
Order Code - 69754
1    MCB 32Amp 3 Phase 3 Pole
2    ELCB 16Amp 1 Phase 1 Pole
3    MCB 6 Amp 1Phase 1 Pole 4nos.
4   Shrouded safety socket 4mm for     Input/Output

MCCB BLOCK PANEL
Order Code - 69755
1.    MCCB Three phase 160Amp
2.    Shrouded safety socket 4mm for Input/Output

1 PHASE KWH METER BLOCK
Order Code - 69756
1     1 Phase Energy Meter
2    Shrouded safety socket 4mm for     Input/Output

3 PHASE KWH METER BLOCK
Order Code - 69757
1     3 Phase Energy Meter
2    Shrouded safety socket 4mm for     Input/Output

3 PHASE FUSE BLOCK
Order Code - 69758
1     Cermic Fuse Holder 3nos.
2    Current Transformer
3     3 Phase Bus bar 5nos.
4    Shrouded safety socket 4mm for     Input/Output

3 PHASE POWER SUPPLY BLOCK
Order Code - 69759
1.    MCB 3 Pole 10Amp.
2.    Pilot lamps for indication R, Y, B phases
3.     Contractor 9Amp, 230 VAC
4.     Push button start, stop switch
5.     Shrouded safety socket 4mm for output

AMMETER & VOLTMETER BLOCK
 Order Code - 69760
1     Analog Current Meter AC Size 72 x 72mm with Reverse, off and Forward Cam Switch
2     Analog Voltmeter AC Size 72 x 72mm with Reverse, off and Forward Cam Switch
3     Shrouded safety socket 4mm for     Input/Output

LAMP LOAD BLOCK
Order Code - 69761
1    Incandescent Lamp Holder 3nos.
2    40W/230V Incandescent Lamps 3nos.
3    Shrouded safety socket 4mm for     Input

3 PHASE MULTIFUNCTION METER AND EMERGENCY SWITCH BLOCK
Order Code - 69762
1.    3 Phase Multifucntion Meter and
2.    V, A, Hz, Pf, KVA, KW, KWH
3.    LED Display, 3 Phase, 4 Wire Aux Supply 230V, 45-65 Hz, 5W, CT Input 5A
4.    Emergency switch 2nos.
5.    Shrouded safety socket 4mm for Input/Output

INDUSTRIAL SOCKET BLOCK - 1 Order Code - 69751
1    5 Pin Socket 2nos.
2    1 Way 2 Terminal 10A Switch     2nos.
3    3 Phase Industrial socket 2 Nos. 16A
4    Shrouded safety socket 4mm for Input/Output

INDUSTRIAL SOCKET BLOCK-2 Order Code - 69752
1    5 Pin Socket 2nos.
2    1 Way 2 Terminal 10A Switch 2nos.
3    3 Phase Industrial socket 2 Nos. 16A
4    Shrouded safety socket 4mm for     Input/Output

MCB BLOCK - 1
Order Code - 69753
1  MCB 32 Amp 3Phase 3 Pole 3nos.
2  Shrouded safety socket 4mm for Input/Output

MCB BLOCK - 2
Order Code - 69754
1    MCB 32Amp 3 Phase 3 Pole
2    ELCB 16Amp 1 Phase 1 Pole
3    MCB 6 Amp 1Phase 1 Pole 4nos.
4    Shrouded safety socket 4mm for     Input/Output

MCCB BLOCK PANEL
Order Code - 69755
1.    MCCB Three phase 160Amp
2.    Shrouded safety socket 4mm for Input/Output

1 PHASE KWH METER BLOCK
Order Code - 69756
1    1 Phase Energy Meter
2    Shrouded safety socket 4mm for     Input/Output

3 PHASE KWH METER BLOCK
Order Code - 69757
1     3 Phase Energy Meter
2    Shrouded safety socket 4mm for     Input/Output

3 PHASE FUSE BLOCK
Order Code - 69758
1     Cermic Fuse Holder 3nos.
2    Current Transformer
3     3 Phase Bus bar 5nos.
4    Shrouded safety socket 4mm for     Input/Output

3 PHASE POWER SUPPLY BLOCK
Order Code - 69759
1.    MCB 3 Pole 10Amp.
2.    Pilot lamps for indication R, Y, B phases
3.     Contractor 9Amp, 230 VAC
4.     Push button start, stop switch
5.      Shrouded safety socket 4mm for output

AMMETER & VOLTMETER BLOCK
 Order Code - 69760
1     Analog Current Meter AC Size 72 x 72mm with Reverse, off and Forward Cam Switch
2     Analog Voltmeter AC Size 72 x 72mm with Reverse, off and Forward Cam Switch
3     Shrouded safety socket 4mm for     Input/Output

LAMP LOAD BLOCK
Order Code - 69761
1    Incandescent Lamp Holder 3nos.
2    40W/230V Incandescent Lamps 3nos.
3    Shrouded safety socket 4mm for     Input

3 PHASE MULTIFUNCTION METER AND EMERGENCY SWITCH BLOCK
Order Code - 69762
1.    3 Phase Multifucntion Meter and
2.    V, A, Hz, Pf, KVA, KW, KWH
3.    LED Display, 3 Phase, 4 Wire Aux Supply 230V, 45-65 Hz, 5W, CT Input 5A
4.    Emergency switch 2nos.
5.    Shrouded safety socket 4mm for Input/Output

Aluminum Industrial Installation Trainer Rack

Order Code - 69700
Aluminium trainer rack madeup aluminium profile size 40×40mm, foldable and light in weight 10 panel setup can be interchange convidently to perform experiments. Dimention Length 1100×Hieght 1000 × Depth 350mm.
