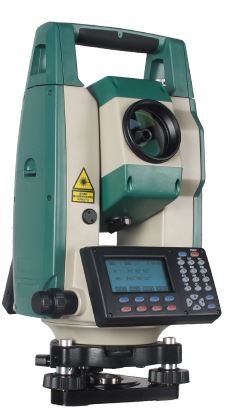

Total Station Set

1. Application: for training students on land surveying and used for Topographic Reflectorless Measurements Surveys, Construction Layout, COGO Calculations, Reference Line Tracking. The total station is a reliable solution at an affordable cost to make your job easier, intuitive onboard software runs on two built-in displays.
2. The Set Consist of: Technical Specification of Total Station Surveyor
3. Angle measurements: - Accuracy: at least 2″ (0.6 mgon)
4. Distance measurements: - Reflectorless Range: at least 350m
5. - White card 90% reflectance: ≥350m
6. - Reflective Sheet: at least 800m
7. - Single Prism: at least 3,000m
8. - Three Prism: at least 6,000m
9. Telescope: - Magnification: at least 30X
10. - Field of View: at least 1°20′ (2.3m at 100m)
11. - Minimum focusing distance: at least 1.5m
12. - Reticle: Illuminated
13. Compensator: - System: Dual-axis
14. - Accuracy: 1″
15. Communication: - Interface: Standard RS232, SD card, USB Drive with micro- USB, Bluetooth
16. - Internal Data Memory: at least 20,000 points
17. - Data Format: ASCII
18. Plummet: - Type: Laser plummet, 4 brightness levels
19. - Accuracy: 1mm at 1.5 m instrument height
20. Operation: - Keyboard: 2 sides alphanumeric backlit rubber keyboard
21. - Display:   • High resolution backlight black and white with contrast adjustment
22.   • Graphics: Min. 280 ×160 pixels
23.  ?• Character: approx. 6 lines × 25 characters
24. - Data recording:   • Internal memory: at least 1 GB
25.   • Removable SD Card and USB stick
26. - Operating system: Dedicated onboard software
27. 'Physical: - Operating Temp.: Min. -20°C to Max. 50°C
28. - Storage Temp.: Min. -40°C to Max. 70°C
29. - Protection Class: IP54 dust and waterproof rating
30. Power Supply:
31. - Internal Battery: at least removable Li-Ion 3 Ah
32. - Operating Time: Min. 10 h to Max. 16 h
33. Standard Supplied: - 1 Set of main unit Total Station (2 Sites Key board face)
34. - 1Pc of Round Prism
35. - 1Pc of Mini prism with mini pole
36. - 2Pcs of Tribrach, without optical plummet, black
37. - 1Pc of Prism pole
38. - 1Pc of Pole supporter (mini tripod)
39. - 1Pc of Battery
40. - 1Pc of Charger and Adapter
41. - 2Pcs of Wooden tripod

Standard Requirement:

1. - Standard and Compliance: CE, ISO 9001-14001, Certificate IQNET management system, or equivalent.
2. - Supplier Requirement Experiences: at least 5 years.
3. - Language: English language available on machine and manual.
4. - Warranty: At least 2 years on Mechanical, Electrical parts and Services.
5. - Include Installation and Training:
6.   • On-site installation performed by certified technicians.
7.   • User training covering equipment, full operation, maintenance, (minimum 1 full training session) at least 2 trainees.
8.  ?• Provision of training materials, including user manuals.
