Transmission Line Trainer

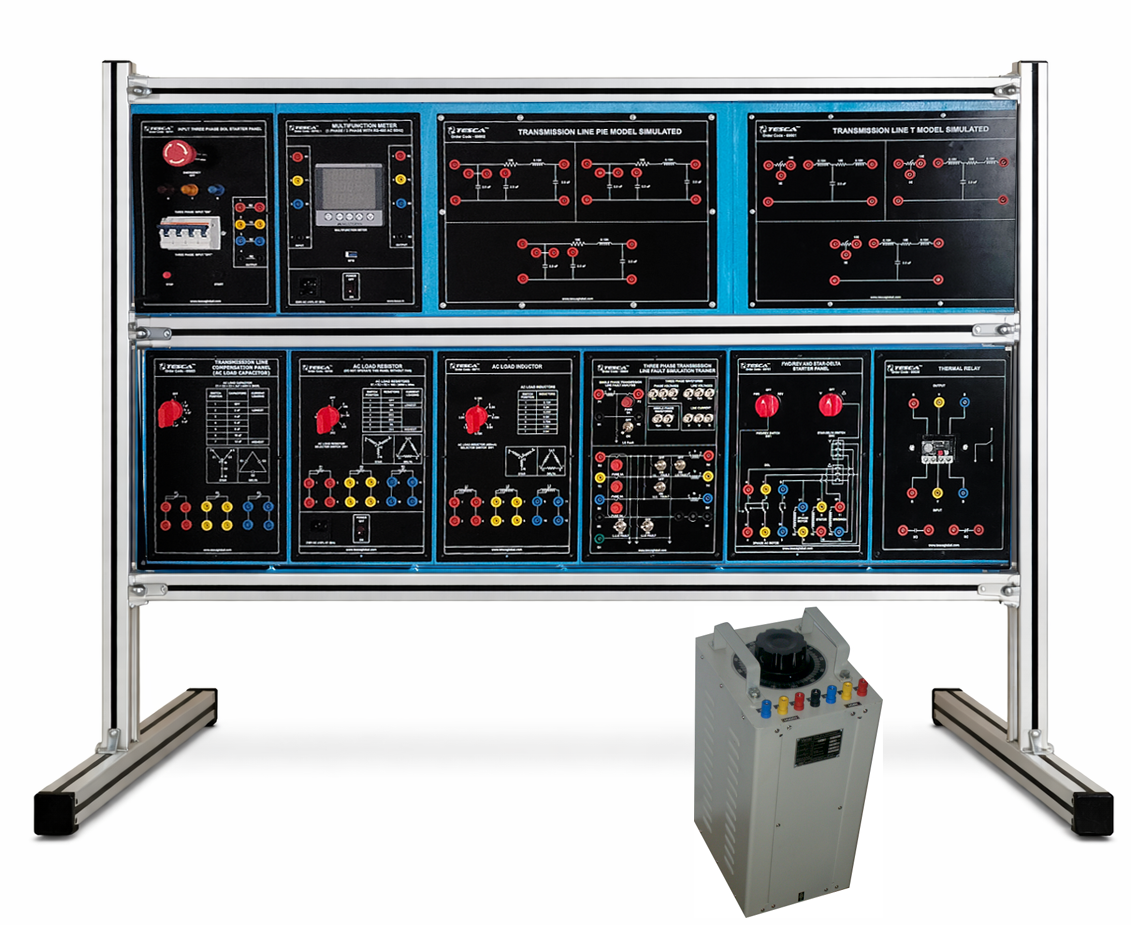

46585A Transmission Line Trainer is a rouged training system for the Electrical laboratories mounted on Aluminum profile rack with sturdy table top flat panel. Each panel has ABS molded plastic sturdy enclosure with 4mm shrouded connectors showing circuit diagram & its
connection tagnumbers for easy understanding and connections. The product helps you to get fully acquainted with the basic concepts and functioning of an Transmission Line Trainer.

1.    Experiments – Short & medium Transmission Line

• Study of No Load Test
• Study of VAR compensation
• Study of Symmetry and un-Symmetry faults in transmission line
• Line to Ground (L-G) Fault analysis of a Single Phase Transmission Line
• Single Line to Ground Fault (L-G) analysis of a Three Phase Transmission Line
• Line to Line Fault (L-L) analysis of Three Phase Transmission Line
• Double Line to Ground Fault (L-L-G) analysis of Three Phase Transmission Line
• Symmetrical L-L-L Fault analysis of Three Phase Transmission Line
• Symmetrical L-L-L-G Fault analysis of Three Phase Transmission Line
• Determination of transmission line constants ABCD.
• Study of flow of real & reactive power
• Load test calculation of regulation, efficiency of transmission line
• Study of effect of length
• Open circuit Test
• Load variation Test
• Ferranti Effect Verification
• Voltage Drop Analysis with load

2.    Experiments – Types of network

• Symmetrical network Pi
• Symmetrical network T
• Unsymmetrical network Pi
• Unsymmetrical network T
