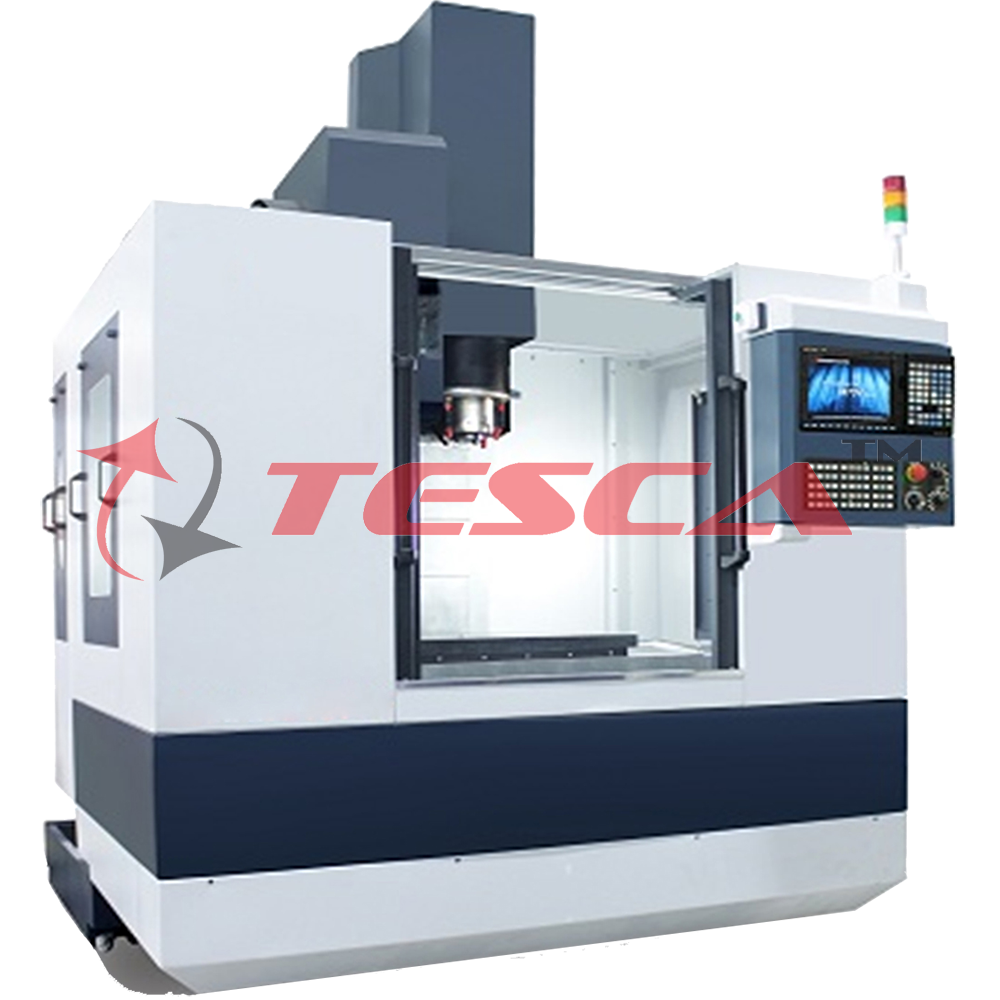

3 Axes CNC Vertical Machining Centre with FANUC / Siemens / Mitsubishi Control Table size - 800 x 450mm

Order Code: 54017

Category: Mechatronics/ Robotics/ CNC Lab

54017 a 3 Axes CNC Vertical Machining Centre with FANUC / Siemens / Mitsubishi Control and with option of 20 Station Automatic Tool Changer. Optional 4th axis capability 54017 is a smart CNC vertical milling machine designed specifically for in...



SPECIFICATION

54017 a 3 Axes CNC Vertical Machining Centre with FANUC / Siemens / Mitsubishi Control and with option of 20 Station Automatic Tool Changer. Optional 4th axis capability

  • 54017 is a smart CNC vertical milling machine designed specifically for industrial specifications.
  • It is a precision milling machine totally enclosed high visibility sliding guard.
  • It uses industrial controls such as FANUC, Siemens, Mitsubishi
  • The machine is provided with widely placed precision LM guide ways for increased rigidity and high accuracy
  • The castings are internally reinforced with heavy ribs to resist flex and damp vibrations.
  • The machine is equipped with cartridge type spindle power with 20 tool arm type



Objective
Interpret the components, concept of intermittent level industrial machine and learn about the advanced Fanuc Syntec controller handling & programming skills for a milling machine to produce different kinds of components with optimized cycles and execute different kinds of practical applications simulated as exercises.



Learning Objectives:
Having successfully completed this lab, the student will demonstrate knowledge in –

  1. Learn about techniques to optimize the cutting parameters
  2. Advanced programming techniques matching industrial standards.
  3. Advanced machining cycles & control techniques.
  4. Knowledge on centralized Lubrication and re-circulating coolant system
  5. Learn about Intricate Tool changers system.
  6. Maintenance of CNC machineries and Trouble shooting


Training Skills –

  1. Identification of the Components of the CNC System
  2. User friendly and graphically assisted different canned cycles
  3. Discussion on Programming Elements
  4. Discussion on Industry Standard ISO G and M Codes
  5. Discussion on Various Tools to be used in a CNC Milling Operation
  6. Study on Process Planning
  7. Discussion on Program Zero and Offset definition
  8. Cutter Radius Compensation and Tool Length Compensation Definition
  9. Preparation of CNC Programs using CNC Milling Machines
  10. Discussion on Various Machining Cycles used in CNC Milling Programming
  11. General machine Maintenance



SPECIFICATIONS

Travel

X axis

mm

600

y axis

mm

500

Z axis

mm



500

Table

Table size

mm

800 x 450

T- Slot (No. x width x pitch)

mm

3 x 18 x 125/ Depth 25

Load on table

Kgs

500

Manual Vice (width/Opening)

mm

150/110

Spindle

Spindle



Direct coupled, Cartridge Type

Spindle nose to table top

mm

80-580

Spindle to Column

mm

480

Spindle nose taper



BT 40

"Spindle output 15 min output (Continuous)"

Kw

"7.5 (5.5); 5.5 (3.7)"

Programmable spindle speed

rpm

100-8000

CNC detail

Control system

"FANUC 0i MF; Siemens 828D Mitsubishi control option available”

Programmable feed rate

mm/min

0 - 10000

Rapid feed X/Y/Z

mm/min

30000/30000/20000

Positioning accuracy

mm

0.01

Repeatability

mm

±0.005

Axis motor



AC Servo motor

Guideways



Linear motion guide ways Size 35

Ball screws X/Y/Z

mm

32mm & 10mm C3 Class

Power source

Power Required

KVA

24

Main supply



415V, 3 Ph., 50 Hz

Coolant / Lubrication

Coolant Capacity

ltrs

180/ 25 LPM

Coolant motor

Kw

0.37 for coolant; 0.74 for flush coolant

Lubrication



Automatic lubrication system

Machine dimensions

L x W x H

mm

2100 x 2650 x 2680

Weight (approx)

Kgs

4100
