Advanced Antenna Trainer with variable frequency (550 MHz - 850 MHz) and 22 Antennas
Order Code: 10012
Category: Antenna, Satellite, GPS, Radar, RF Trainers

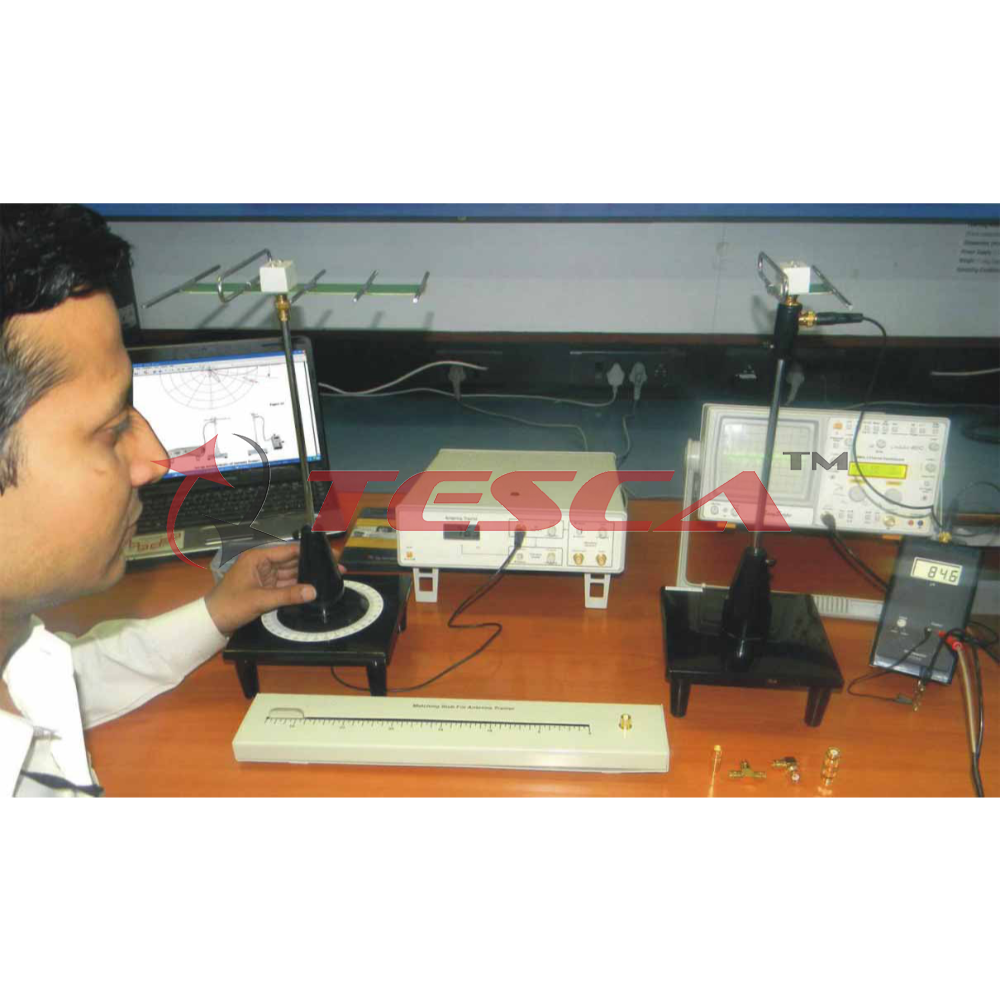

Antenna platform Order Code-10012 is a student friendly trainer kit for studying characteristics of different antennas.
SPECIFICATION
Order Code-10012 is designed so that students can take the readings and plot the polar plots themselves, thus understanding the subject thoroughly. They can even stop & repeat the readings in between if needed.
All the antennas are made by high conducting rods with chrome finish for long durability and mounted on the glass epoxy PCB for easy mounting and dismounting Areas of Experimentation and Study
Features
- Self contained, simple and student friendly trainer
- Hands on set-up for measuring and plotting radiation patterns
- of different Antennas
- Built in RF & Modulation generators
- Built in frequency display
- Antenna Matching Stub
- Characteristics and SWR measurement
- Transmitting and Receiving levels observed on meters
- Built in DC power supply
- Fully documented, Operating manual and polar charts (2 types)
- with each trainer
- “Antenna kit” for fabricating special antenna
- Compact design
- Light weight
- 2 Year Warranty
Scope of Learning
- Study of Simple Dipole l/2 Antenna
- Performing Polarisation Test and Modulation Test
- Study of Reciprocity Theorem
- Study of variations in the radiation strength at a given distance
- from the antenna
- Antenna Current Sensor and SWR Measurement
- Study of Rhombus Antenna, Ground Plane Antenna, Slot
- Antenna, Helix Antenna and antenna bandwidth
|
Technical Specifications |
|
|
RF generator |
550 to 850 MHz approximately(with level adjust) |
|
Modulation Generator |
1 KHz approximately (300 mV) |
|
Directional Coupler |
Forward & Reverse (On board selectable) |
|
Matching Stub |
Slide Stub |
|
Antenna Rotation |
0- 360 Degree, Resolution 1 Degree Transmitting & Receiver masts provided |
|
Receiving antenna |
Folded Dipole with reflector |
|
Detector Display |
Adjustable meter |
|
Interconnections |
BNC |
|
Power Supply |
230 V ±10%, 50/60 Hz |
|
Power Consumption |
3VA (approximately |
|
Weight |
3 kgs. Approximately |
|
Dimensions (MainUnit-mm) |
W 285 × H 75 × D 385 |
