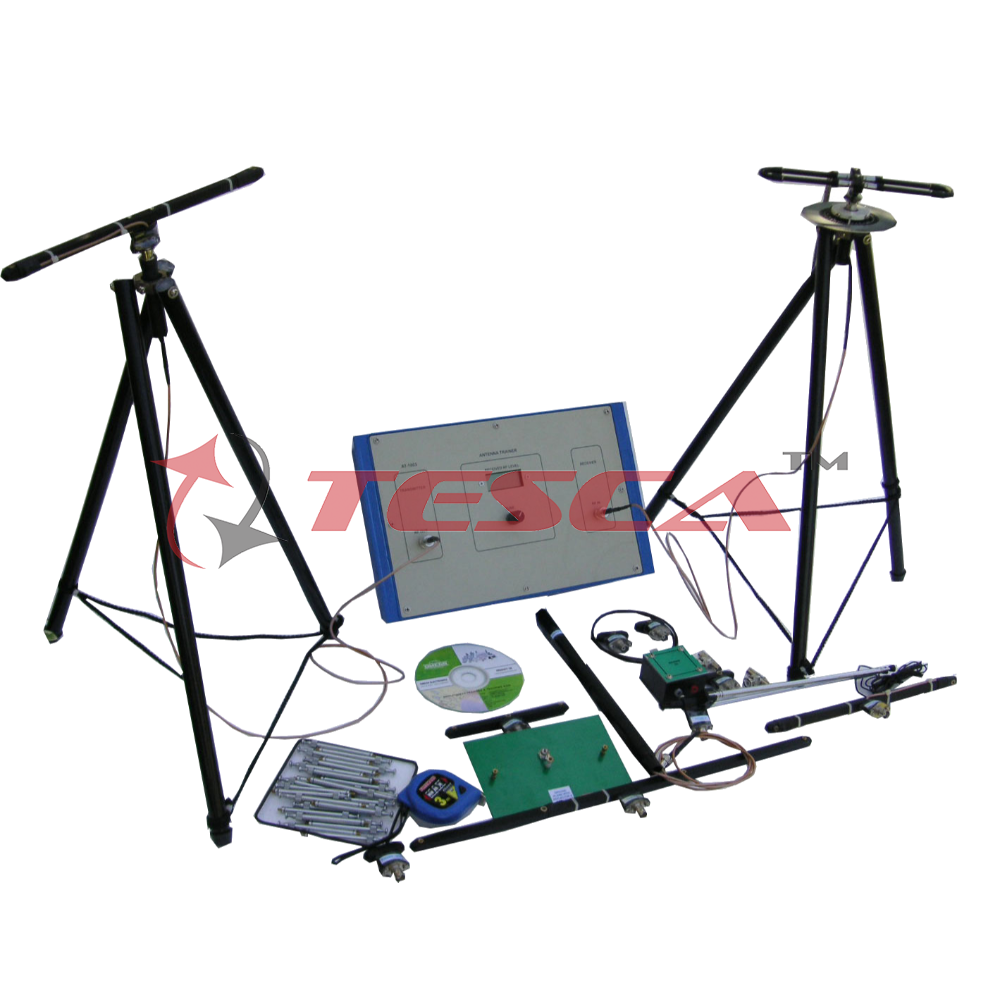

Basic Antenna Trainer has been designed to provide useful tools for hands on experimentation and teaching of various commonly used antennas in UHF-Microwave band in the laboratory for students of all levels. It can be used in stand-alone mode. In this system, receiving antenna is rotated manually from 0 to 360 degrees and accordingly the signal strength can be monitored on the Receiver. It comes with a Polar plotting software for storing readings manually The system consists of a set of two tripods one for mounting the transmitting antenna and another for mounting the receiving antenna, 11Antennas,RFTransmitter/ Receiver, Antenna Plotting Software and relevant accessories/ cables.


Network Analyser: RF Transmitter & Receiver:

• Frequency : 86 - 860 MHz PLL synthesized
• Step Size : 0.05, 0.1, 0.25, 0.5, 1, 10, 100 Mhz
• Accuracy : 0.01%
• Display : 16X2 Backlit LCD
• Functions : Menu, Enter, Escape, Up & Down
• Memory Location : 1000 individual frequencies and level can be stored/recalled
• Output Impedance : 50 Ohms
• RF Level : 90 dBuVTypical
• Measurement : RF level in dBuV with 0.1dB resolution
• Dynamic Range : 60 dB Log
• Manual Mode : Data logging for antenna gain & polar/cartesian plot
• USB interface : Easy connectivity to PC using polar pattern plotting software
• Power Supply : 230V @ 50 Hz

Experiments:

1.  Variation of field strength with distance
2.  Plot radiation pattern of omni directional antenna
3.  Plot radiation pattern of directional antenna
4.  Polarization of vertical and horizontal antenna
5.  Study resonant and non resonant antenna
6.  Demonstrate reciprocity theorem of antennas
7.  Study current distribution along the element of antenna
8.  Study different antennas polar plots, radiation patterns, gain, beam width, front back ratio
9.  Comparison of different antennas

Shipping List :
Antennas Other Accessories

• Dipole L/2 a. RF Transmitter Tripod & Receiver Tripod
• Dipole L/4 b. Experimental Manual
• Dipole 3L/2 c. Antenna Plotting Software CD
• Folded Dipole
• Yagi Uda (3E)
• Yagi Uda (4E)
• Ground Plane with Reflector & Director
• Endfire (Phase Array L/2)
• Square Loop
• Zepplin/ Horizontal End Feed
• Broadside Array L/2
