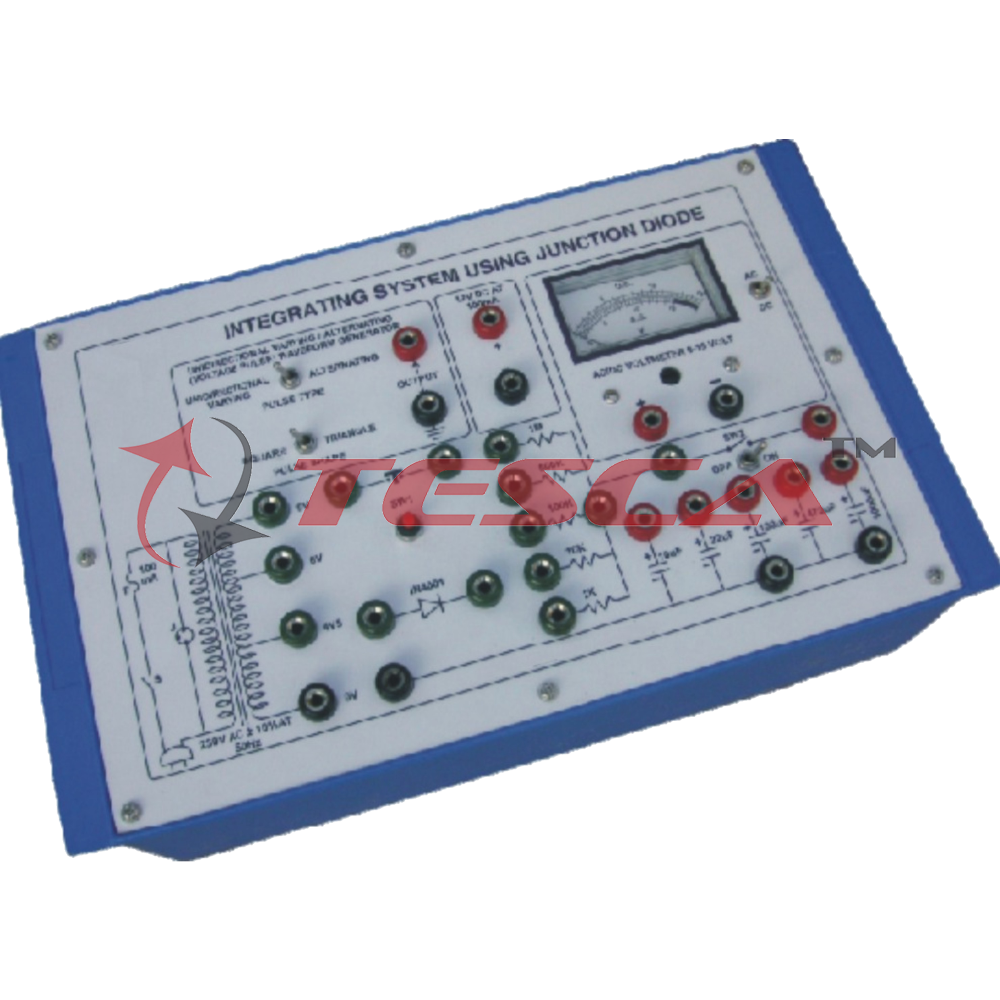

Integrating System Using Junction Diode with power supply and 1meters
Order Code: 36202
Category: Analog Electronics Trainers
Experimental Training Board has been designed specifically to study an integrating system using a junction diode, with unidirectional varying alternating and sinusoidal voltages. The special feature of this unit is a built-in unidirectional vary...
SPECIFICATION
Practical experience on this board carries great educative value for Science and Engineering Students particularly for Students of B.Sc and 10 2 Classes.
Object:
- Charging of a condenser by unidirectional varying voltage pulses and then integrate them.
- Charging of a condenser by alternating voltage pulses and then to integrate them.
- Charging of a condenser by sinusoidal voltage pulses and then to integrate them.
Features:
The board consists of the following built-in parts:
- Unidirectional varying alternating (voltage pulse) waveform generator, with switch selectable type and shape of output pulses.
- Mains transformer with tappings of 0V, 4V5, 5V, 6V and 9VA.C. at 100mA.
- 12V D.C. at 100mA, IC regulated Power Supply (for use with rheostat).
- A.C. / D.C. Voltmeter, 65mm rectangular dial, with A.C. and D.C. switch selectable range of 0-15V.
- Silicon Junction Diode, Push to ON Switch and Toggle Switch.
- Adequate no. of other Electronic Components.
- Mains ON/OFF switch, Fuse and Jewel light.
- The unit is operative on 230V ±10% at 50Hz A.C. Mains.
- Adequate no. of patch cords stackable from rear both ends 4 mm spring loaded plug length ½ metre.
- Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections.
- Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
Other Apparatus Required:
- Metronome
- Rheostat (OPTIONAL)
