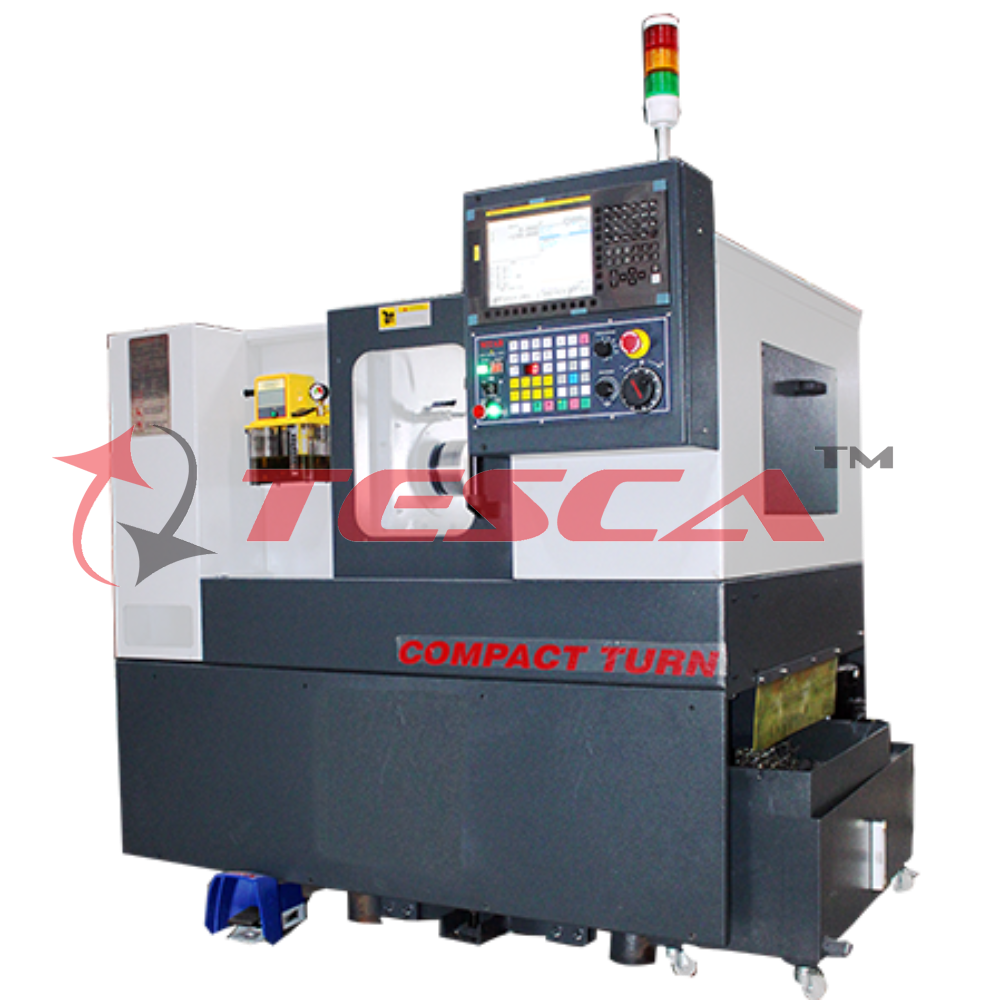

Intermediate CNC Flatbed Lathe Machine
Order Code: 54007
Category: Mechatronics/ Robotics/ CNC Lab
Objective Interpret the components, concept of intermittent level industrial machine and learn about the advanced Fanuc/Siemens/Syntec controller handling & programming skills for a turning machine to produce different kinds of components with o...
SPECIFICATION
Objective
Interpret the components, concept of intermittent level industrial machine and learn about the advanced Fanuc/Siemens/Syntec controller handling & programming skills for a turning machine to produce different kinds of components with optimized cycles and execute different kinds of practical applications simulated as exercises.
Learning Objectives:
Having successfully completed this lab, the student will demonstrate knowledge in –
- Learn about techniques to optimize the cutting parameters
- Advanced programming techniques matching industrial standards.
- Advanced machining cycles & control techniques.
- Knowledge on centralized Lubrication and re-circulating coolant system
- Learn about Intricate Tool changers system.
- Maintenance of CNC machineries and Trouble shooting
CNC Flat Bed Bench Turning Centre with Linear Tools SIEMENS 828D/ FANUC 0i TF control Programming and Industrial Control Panel With colour monitor with closed loop servo motor control with further option of linking to CAD/CAM.
|
SPECIFICATIONS |
|||
|
Axes |
|||
|
X- axis travel |
mm |
230 |
|
|
Z - axis Travel |
mm |
270 |
|
|
Ball Screw X / Z |
mm |
Ø25 x 10 - C3 Class |
|
|
Programmable feed rate |
mm/min |
0 - 10000 |
|
|
Rapid feed rate |
mm/min |
30000 |
|
|
Axis motor X / Z Type |
|
AC Servo motor |
|
|
Slides |
|
Linear motion guide ways |
|
|
CAPACITY |
|||
|
Chuck Size |
mm |
135 |
|
|
Chuck Type |
|
Hydraulic |
|
|
Swing over bed |
mm |
300 |
|
|
Swing over cross slide |
mm |
120 |
|
|
Maximum turning Diameter |
mm |
100 |
|
|
Maximum turning Length |
mm |
100 |
|
|
Bed |
type |
Flatbed Lathe |
|
|
No. of axes |
no |
2 |
|
|
Distance between centers |
mm |
NA |
|
|
ACCURACY |
|||
|
Positioning Accuracy |
mm |
0.01 |
|
|
Repeatability |
mm |
+/- 0.005 |
|
|
SPINDLE |
|||
|
Spindle nose taper |
|
A2-4 |
|
|
Bore through spindle |
mm |
40 |
|
|
Programmable spindle speed |
rpm |
150-4000 |
|
|
Spindle Motor Power S1 (15 minute rating in parenthesis) |
kW |
"Fanuc: 3.7 (5); Siemens: 3.7 (5)” |
|
|
CNC detail |
|||
|
Control system |
|
"FANUC 0i TF; SIEMENS 828D” |
|
|
Linear Tooling |
|
|
|
|
Tool cross section |
|
20 x 20/ 25 x 25 |
|
|
No. of Station |
no |
4 or 5 |
|
|
Boring bar size(capacity) |
mm |
25 |
|
|
Coolant / Lubrication |
|||
|
Capacity |
L |
80/ 40 LPM |
|
|
Coolant motor |
kW |
0.1 |
|
|
Lubrication |
- |
Automatic |
|
|
Power source |
|||
|
Main supply (±10 %) |
|
415V, 3 Ph., 50/60 Hz |
|
|
Stabilizer |
|
3 phase servo type |
|
|
Machine dimensions |
|||
|
L x W x H |
mm |
1700 x 1650 x 1900 |
|
|
Weight (approx) |
Kgs |
1100 |
|
|
|
|||
|
Standard Lathe Operations and Maintenance Tools: |
|||
|
Allen Key 1.0,2.0,2.5,3.0,4.0,5.0,6.0,8.0mm |
Set |
1 |
|
|
Double Ended Spanner - 8x9, 10x11, 12x13,16x17 mm |
Set |
1 |
|
|
Screwdriver (No: 600) |
No. |
1 |
|
|
Oil can |
No. |
1 |
|
|
63mm Brush |
No. |
1 |
|
